Key Implementations:

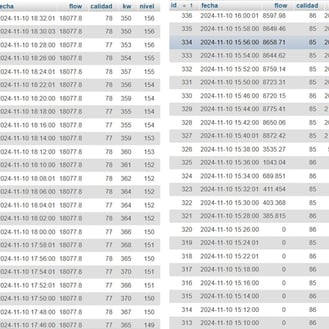

To ensure seamless data acquisition, a MODBUS gateway was implemented—an initiative taken to enhance the sensor's data accessibility. A 🐍 Python-based solution was developed using libmodbus, allowing real-time flow readings to be stored in a MySQL database 🛢.

The system provided continuous monitoring of cubic meters per second (m³/s) flowing through the power pipelines of the plant’s three main reservoirs.

After the project was a success, the same installation was carried out on two more pipes, with positive results.

Project Description

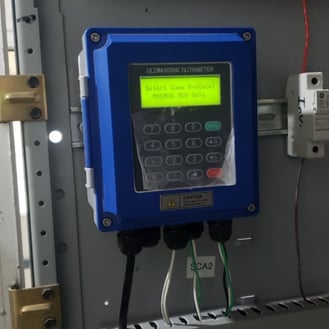

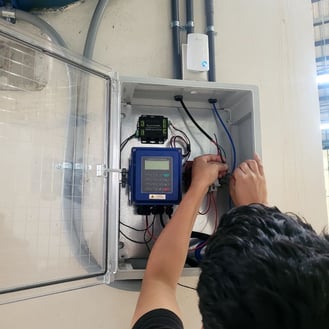

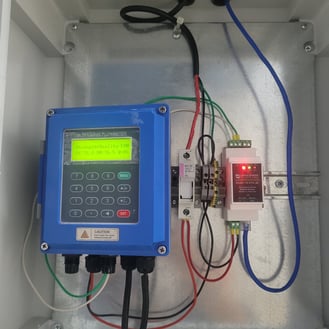

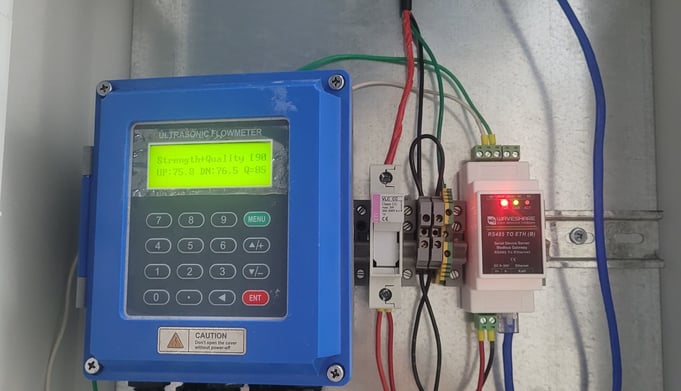

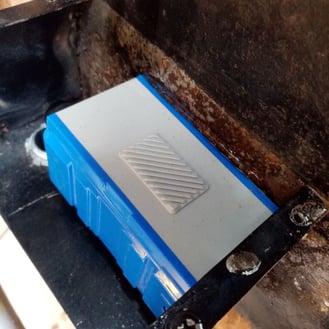

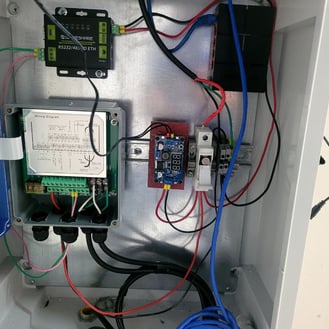

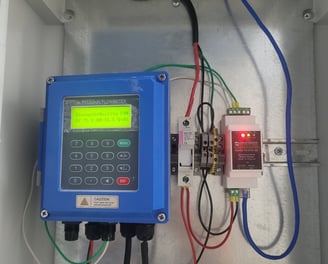

This project involved the installation and integration of a TUF-2000B ultrasonic flow meter on a 1.56-meter diameter metal pipeline to monitor water flow in the hydroelectric plant's main reservoirs. The sensor was connected using shielded cabling and modified to enable MODBUS-RTU Serial communication for real-time data extraction.

Project Development
